Product description
HARDWARE PARAMETERS
Technical Specifications
Model |

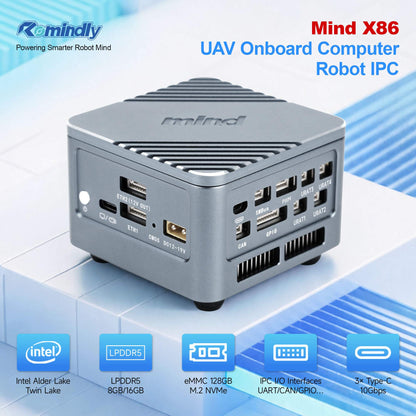

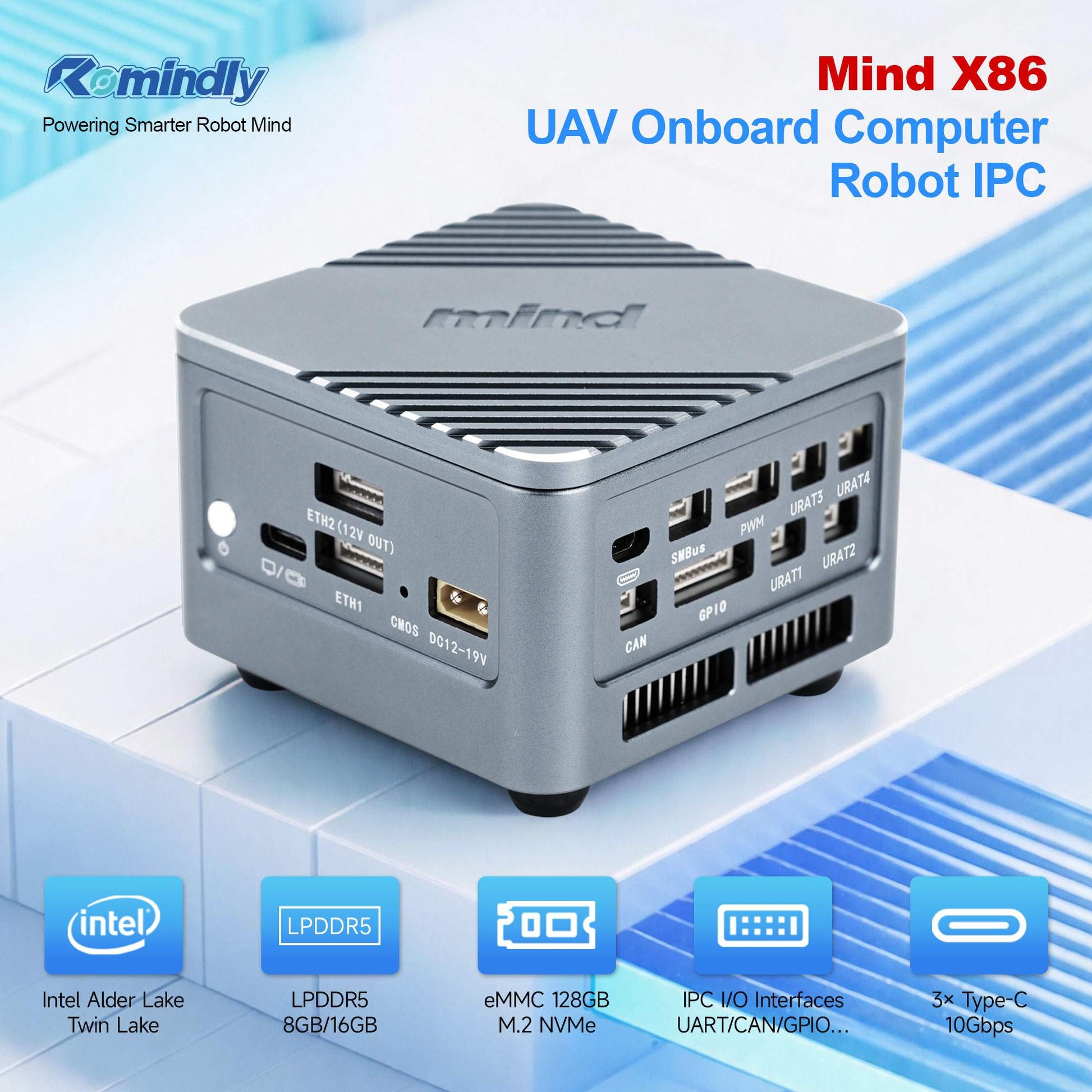

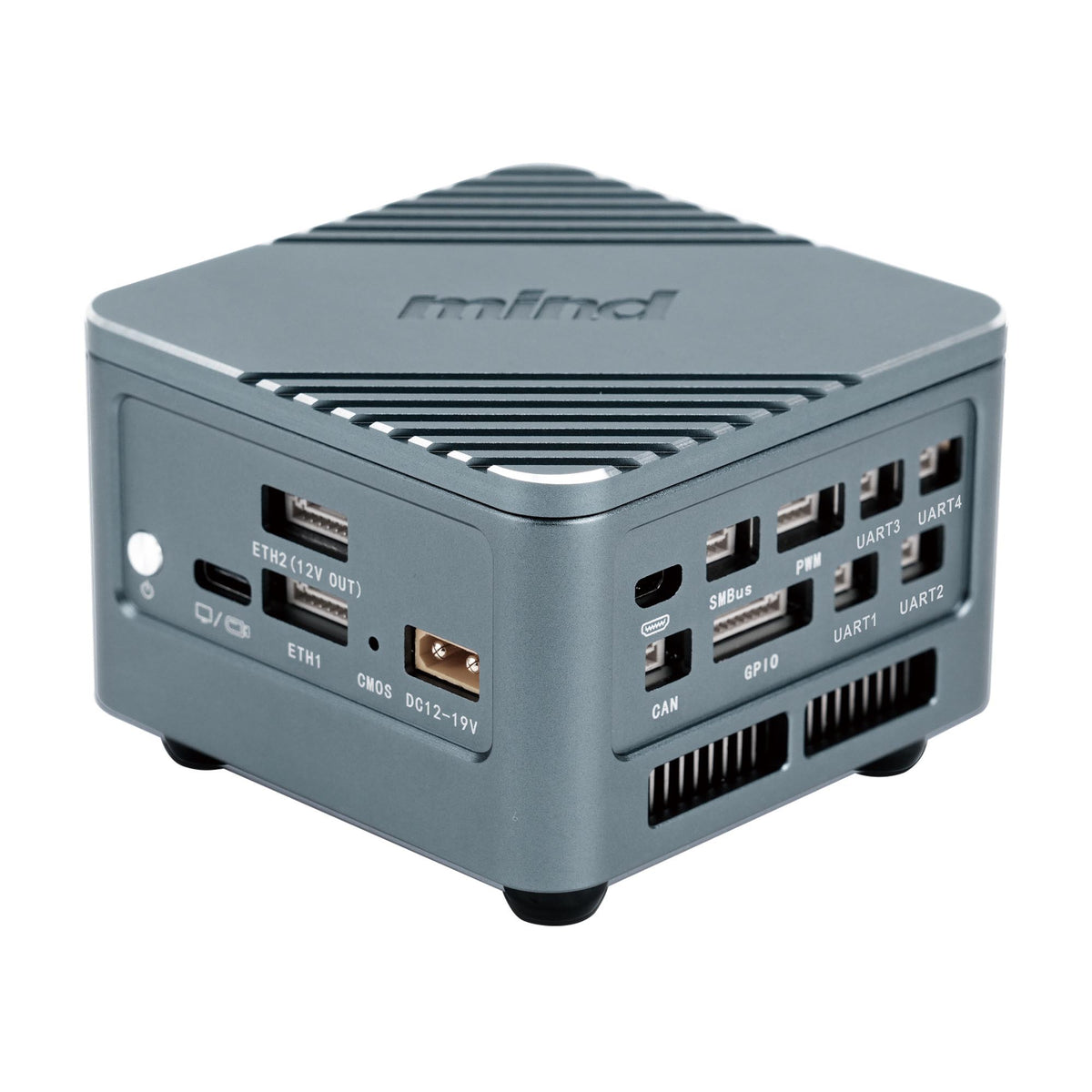

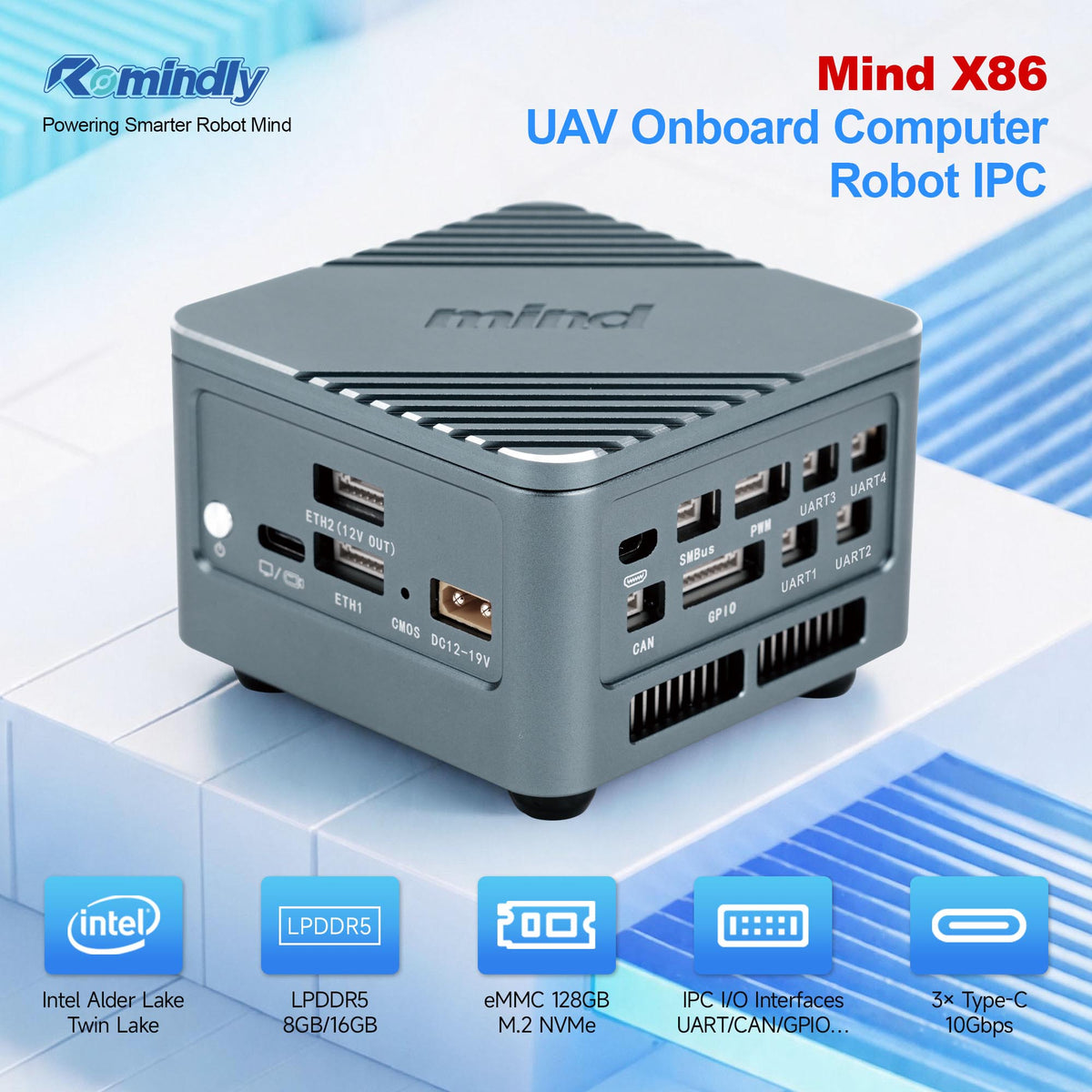

Romindly Mind |
CPU |
Intel Alder Lake/Twin Lake N305 8C / 8T Max Boost Frequency up to 3.8 GHz TDP 15W N355 8C / 8T Max Boost Frequency up to 3.9 GHz TDP 15W *Supports custom configuration with N100/N150 CPU |
GPU |
Intel® UHD Graphics 1.25GHz 32EU Intel® Graphics 1.35GHz 32EU *The integrated GPU of N355 delivers more complete functionality on Ubuntu 24.04 and above |
RAM |

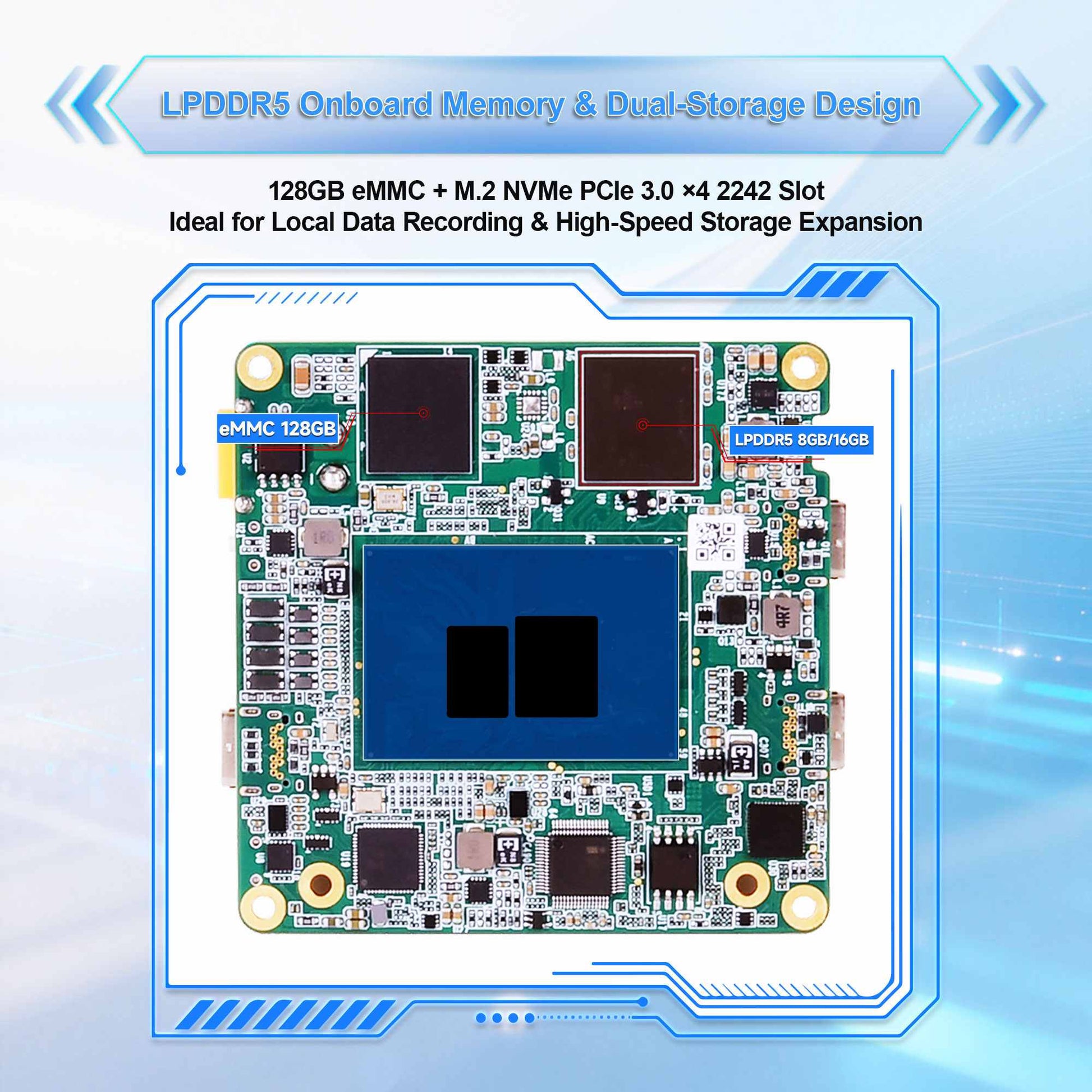

LPDDR5 memory 8GB / 16GB 4800MHz |
Storage |

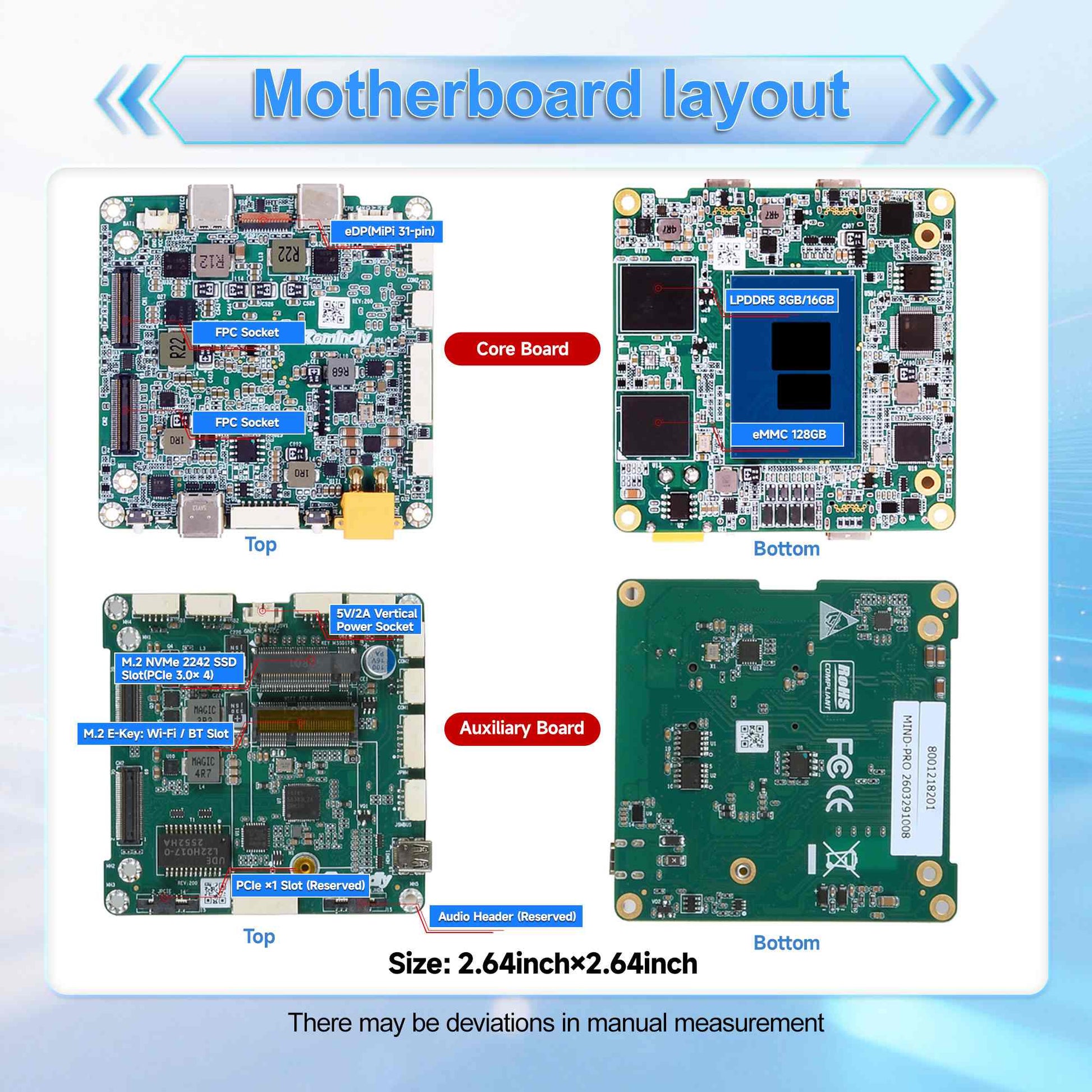

1× On-board eMMC storage 128GB 1× M.2 M-Key NVMe PCIe3.0 x4 2242 Slot |
Ethernet |

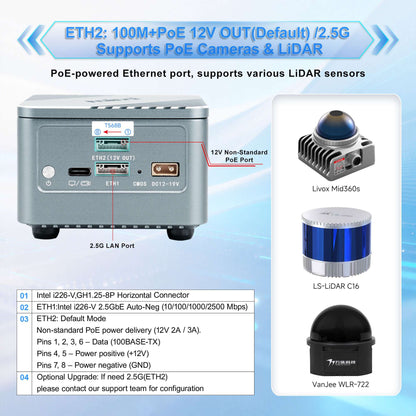

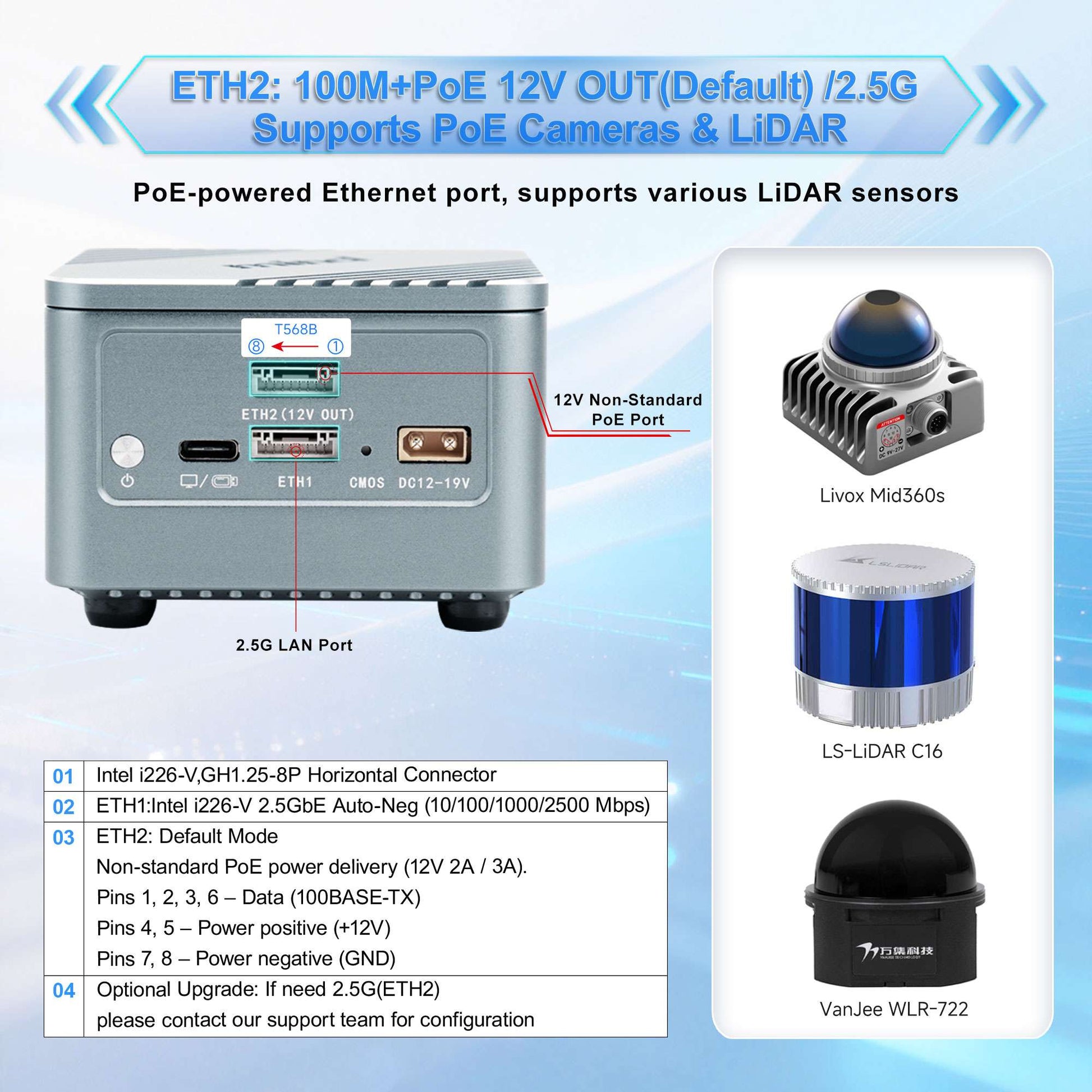

2× ETH (GH1.25-8P Horizontal, Intel i226-V) ETH1: 2.5GbE (10/100/1000/2500Mbps Auto) ETH2: Mode ① 100M + Non-standard 12V PoE Output (12V 2A/3A) Mode ② 2.5GbE (Non-PoE) *ETH2 is Mode ① by default; contact customer service for optional Mode ② *ETH2 Mode ①: Do not connect non-PoE devices |
Wi-Fi |
M.2 E-Key 2230 Wi-Fi Slot (PCIe3.0 x1) The small pepper antenna delivers more stable signal performance Supports RTL8852BE / Intel AX210NGW and others |
USB |

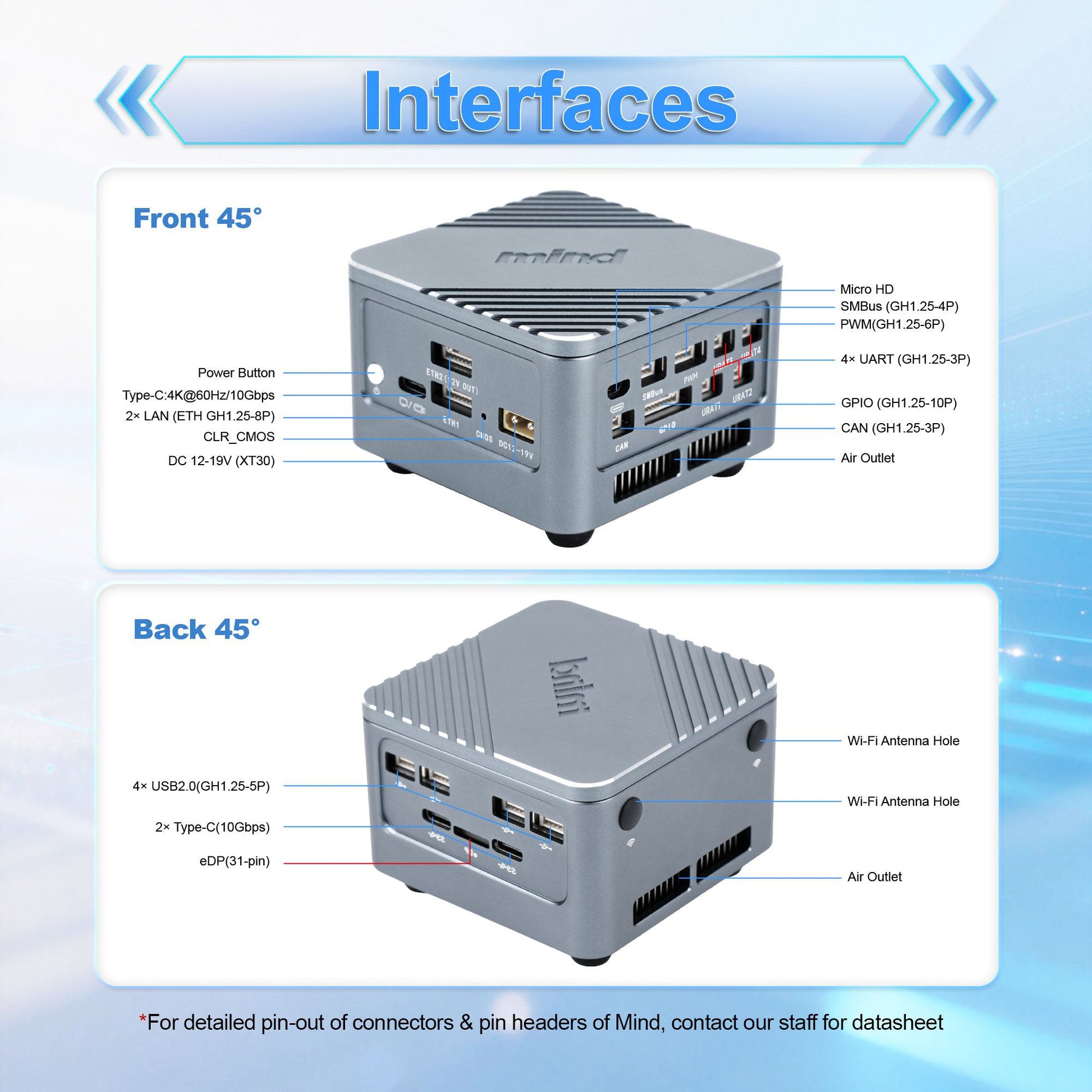

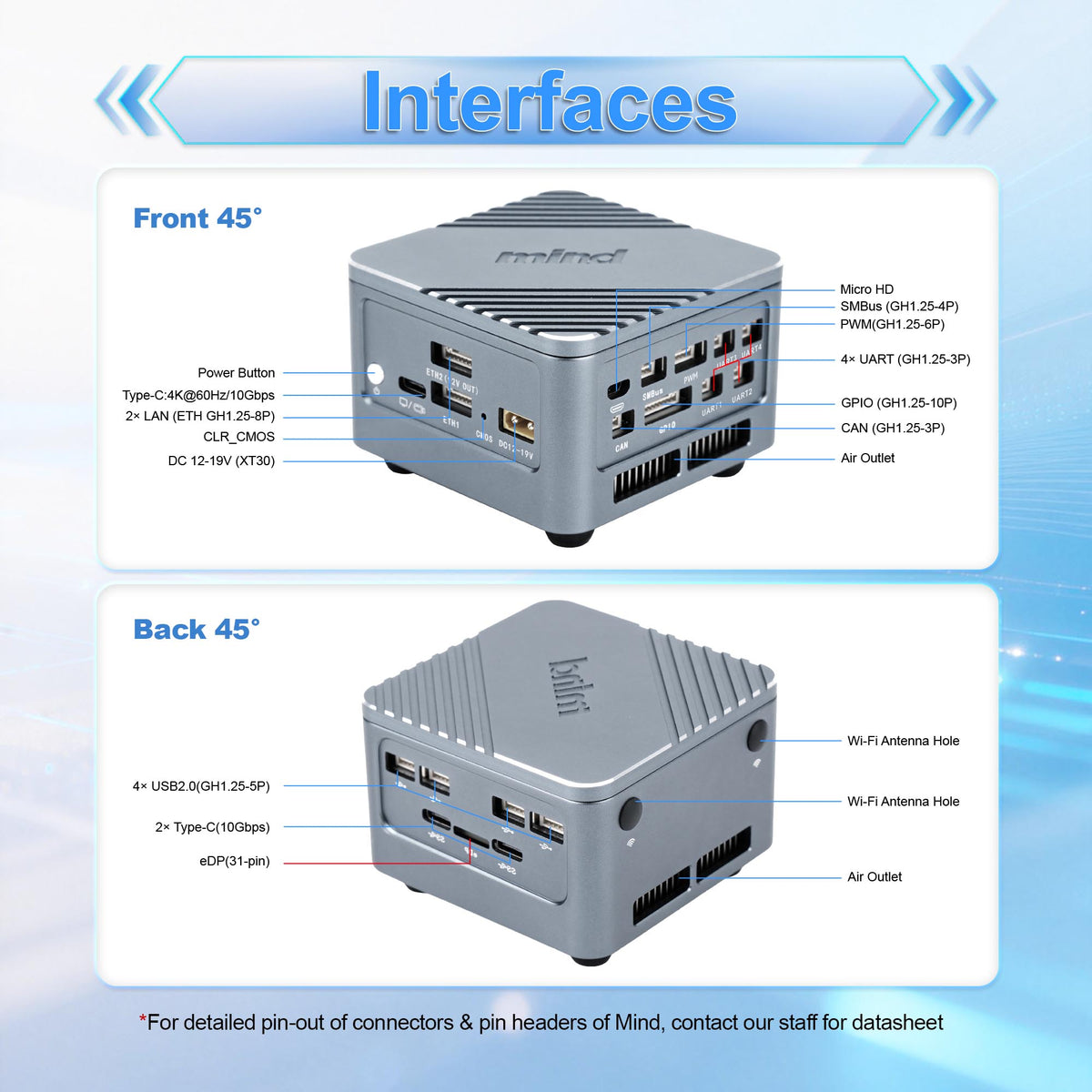

Front: 1× Type-C up to 10Gbps (DP1.4 + USB3.2 Gen 2) Back: 2× Type-C up to 10Gbps 4× USB2.0 (GH1.25-5P Horizontal) |
Display |
1× Type-C 4K@60Hz (Front, DP1.4 + USB3.2 10Gbps) 1× Micro HDMI 4K@60Hz 1× eDP (31-pin MIPI Connector, supports touch screens and matching services) |
UART |
4× UART (3.3V TTL GH1.25-3P Horizontal) |
CAN |
1× CAN (GH1.25-3P Horizontal) |
GPIO |
1× GPIO (8-channel GPIO) GH1.25-10P Horizontal |
SMBus |
1× SMBus / I2C Bus (GH1.25-4P Horizontal 3.3V Auxiliary Power) |
PWM |
1× PWM (GH1.25-6P Horizontal) |
CMOS |
1× CMOS Clear Button |
Power Output |
1× Power Output (Auxiliary Board) (XH1.25-2P 5V/2A OUT) |
Cooling |

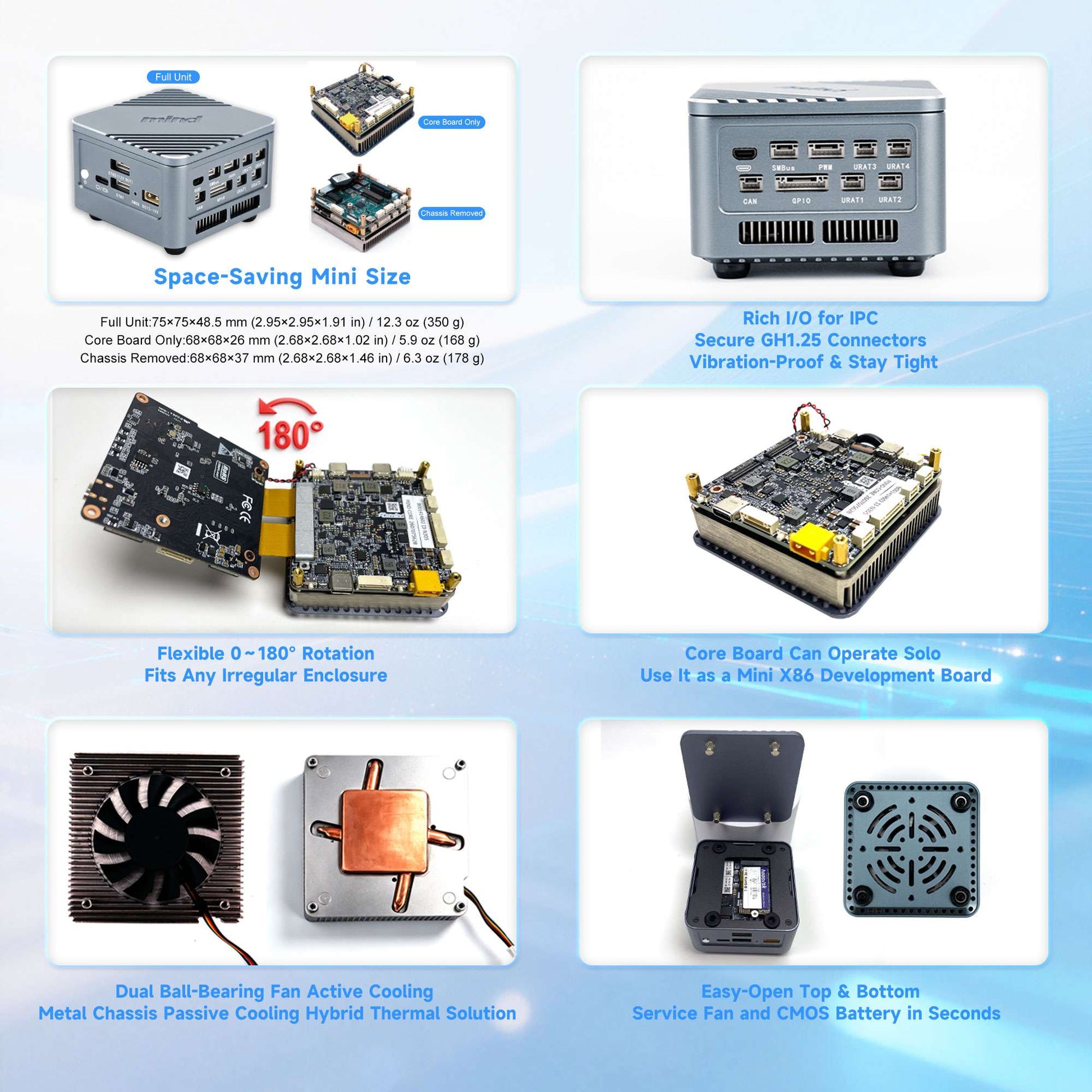

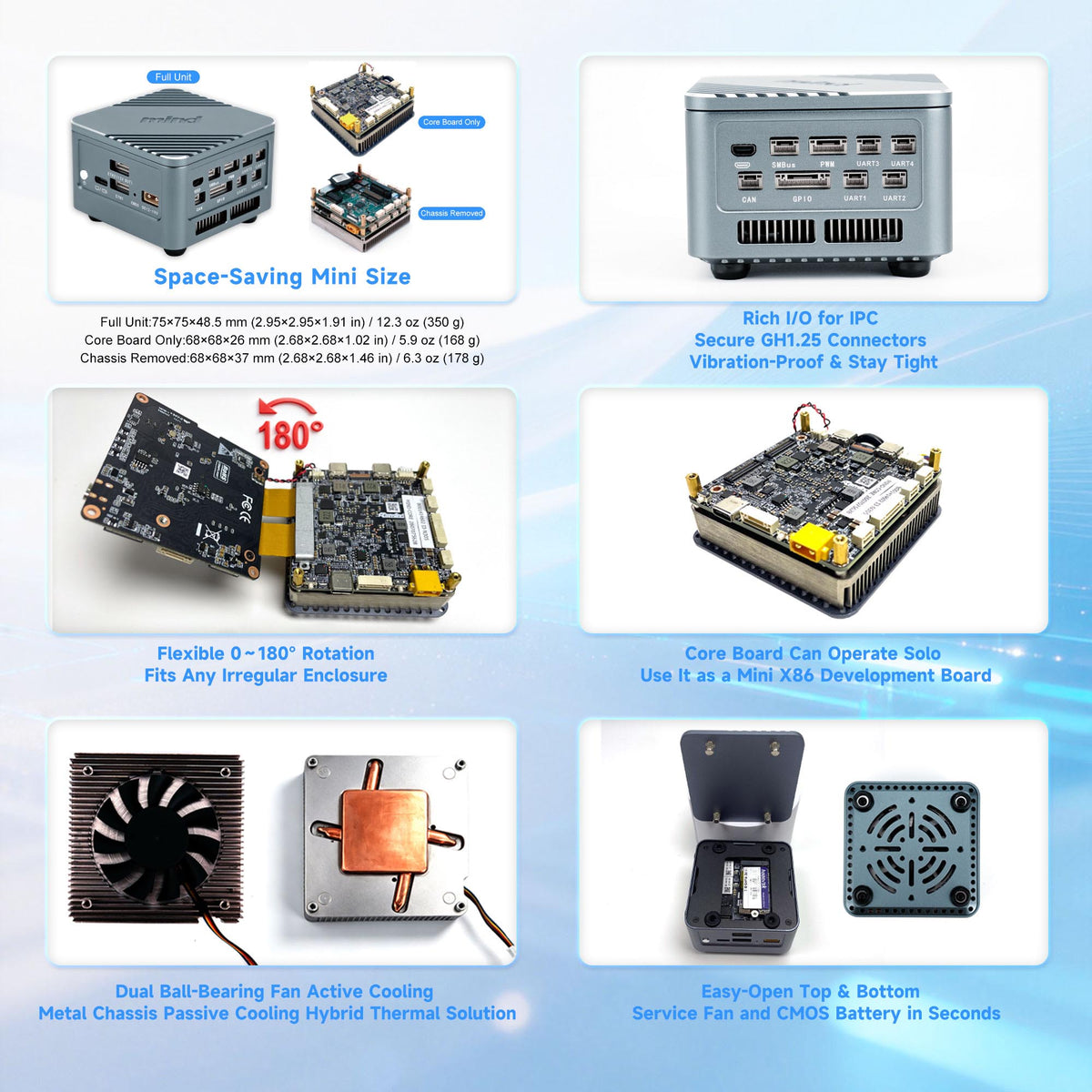

Dual Ball-Bearing Fan Active Cooling + Metal Chassis Passive Cooling Hybrid Thermal Solution 5010 4-pin PWM DC 12V 0.1A |
Housing Material |
Aluminum Alloy (Auxiliary Cooling) |
Dimensions / Weight |
Full Unit: 75 × 75 × 48.5 mm / 350g (2.95 × 2.95 × 1.91 in / 12.34 oz) Chassis Removed: 68 × 68 × 37 mm / 178g (2.68 × 2.68 × 1.46 in / 6.28 oz) |
BIOS |
AMI EFI BIOS Supports power-on after power loss, WoL, PXE boot |
Audio (AUD) |
An HDA interface is reserved on the Auxiliary Board and can be used with audio codec modules (fixed codec model: ALC897) |
PCIe |
PCIe x1 lane reserved on Auxiliary Board (Expandable for storage drives, network adapters and more) |
Power Supply |
1× DC-IN 12V-19V (XT30), maximum load up to 90W |
Operating Environment |
Working: -10°C ~ 60°C Storage: -20°C ~ 60°C Humidity: 10% ~ 90% non-condensing |
Operating System |
Windows 10/11, Linux Self-developed ROS System (Navigation & Path Planning) *Contact customer service for pre-installed system |
